Linear Stage 75~600mm — 내장컨트롤러·리니어엔코더 | 이동제어 | 모델 X-LRQ075AL-DE51-KX14C, X-LRQ150AL-DE51-KX14C, X-LRQ300AL-DE51-KX14C | 현미경·광학 액세서리 견적 | DAU-MMOTILIS | Quantum Design

Q: 어떤 이동 거리 옵션이 있나요?

75mm, 150mm, 300mm, 450mm, 600mm의 5가지 이동 거리 옵션을 제공하며, 각각 개방형과 커버형으로 선택할 수 있습니다.

Q: 별도의 컨트롤러가 필요한가요?

아니요, 컨트롤러와 리니어 엔코더가 내장되어 있어 별도의 제어 장치 없이 사용할 수 있습니다.

Q: 커버형과 개방형의 차이는 무엇인가요?

커버형은 먼지나 오염으로부터 보호가 필요한 환경에 적합하며, 개방형은 일반적인 실험실 환경에서 사용하기 적합합니다.

Q: 어떤 구동 방식을 사용하나요?

리드스크류(Lead-screw) 방식을 사용하며, 고정밀·저속 특성과 인라인 드라이브 구조를 갖추고 있습니다.

←

Quantum Design · DAU-MMOTILIS

선형 이송장치

Linear Stage

광학 실험, 레이저 정렬, 현미경 샘플 위치 결정, 자동화 검사 장비, 정밀 조립 시스템 등에 사용됩니다. 내장 컨트롤러와 엔코더로 인해 복잡한 외부 제어 시스템 없이 정밀한 선형 이동을 구현할 수 있습니다. 커버형 모델은 먼지나 오염이 우려되는 환경에서 사용하기 적합합니다.

선형 이송장치Linear StageDAU-MMOTILISQuantum Design

단위

재고

주문 가능

옵션

71종

가격 범위

옵션별 조건은 주문 옵션에서 확인

가격문의

옵션 선택

옵션명, 설명, 단위, 재고를 확인하세요.

71개

X-LRQ075AL-DE51-KX14C

linear stage 75 mm travel linear encoder and controller

7 Day EA

문의

X-LRQ150AL-DE51-KX14C

linear stage 150 mm travel linear encoder and controller

7 Day EA

문의

X-LRQ300AL-DE51-KX14C

linear stage 300 mm travel linear encoder and controller

7 Day EA

문의

X-LRQ450AL-DE51-KX14C

linear stage 450 mm travel linear encoder and controller

7 Day EA

문의

견적요청 상품

선택한 옵션 0개

상품 설명

Motorized Linear Stage는 75mm부터 600mm까지 다양한 이동 거리를 제공하는 정밀 선형 이송장치입니다. 리드스크류 방식으로 구동되며, 리니어 엔코더와 컨트롤러가 내장되어 있어 별도의 제어 장치 없이 사용할 수 있습니다. 고정밀·저속 특성을 갖춘 인라인 드라이브 구조로 설계되었습니다. 개방형 모델과 커버가 있는 모델로 구분되어 있어 사용 환경에 따라 선택할 수 있습니다. 정밀 위치 결정이 필요한 다양한 응용 분야에 적합합니다.

핵심 규격

이동 거리: 75, 150, 300, 450, 600 mm
구동 방식: Lead-screw driven
엔코더: Linear encoder (내장)

상세 규격표

좌우로 밀어 전체 규격을 확인하세요.

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P001E1	X-LRQ075AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P002E1	X-LRQ150AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 150 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P003E1	X-LRQ300AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 300 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P004E1	X-LRQ450AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 450 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P005E1	X-LRQ600AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 600 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P006E1	X-LRQ075AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P007E1	X-LRQ150AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 150 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P008E1	X-LRQ300AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 300 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P009E1	X-LRQ450AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 450 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P010E1	X-LRQ600AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 600 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P011E1	X-LRM100A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 100 mm travel, fine resolution
DAU-MMOTILIS-P012E1	X-LRM150A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 150 mm travel, fine resolution
DAU-MMOTILIS-P013E1	X-LRM200A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 200 mm travel, fine resolution

상세 규격 표

Specification
Specification	Value	Value	Value

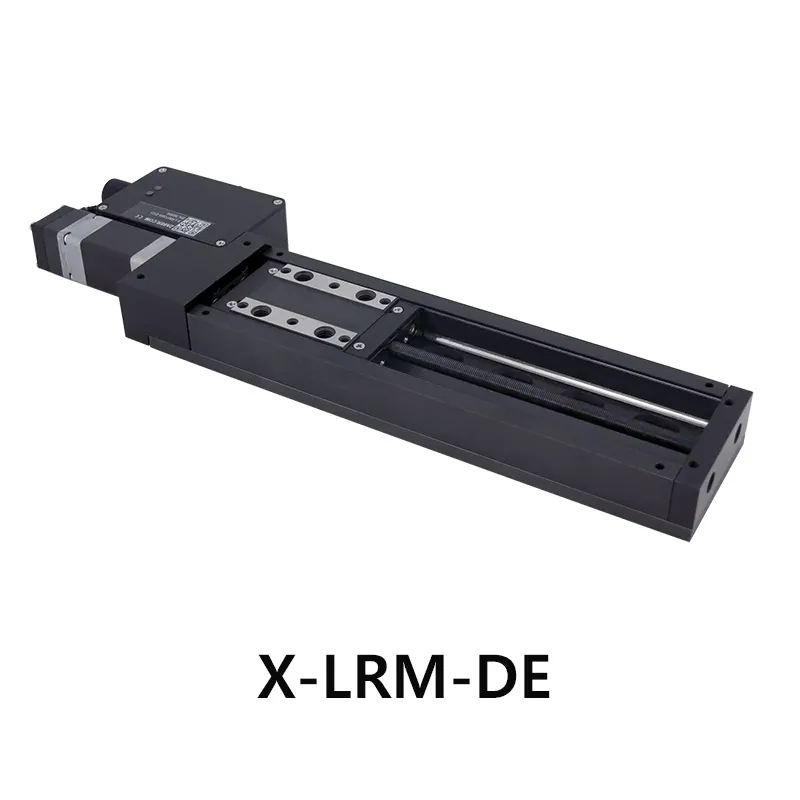

Model	X-LRQ-DE series	X-LRQ-DEC series	X-LRM-DE series
Feature	High precision stages with built-in controllers and linear encoders	High precision stages with built-in controllers and linear encoders with dust cover	Miniature, steel, motorized linear stages with built-in controllers and linear encoders.
Built-in Controller	Yes	Yes	Yes
Encoder Type	Linear quadrature encoder	Linear quadrature encoder	Linear quadrature encoder
Encoder Resolution	50 nm	50 nm
Communication Interface	RS-232	RS-232	RS-232, USB 2.0
Communication Protocol	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary
Maximum Centered Load	1000 N	1000 N	500 N
Maximum Cantilever Load	3000 N-cm	3000 N-cm	1500 N-cm
Guide Type	Recirculating Ball Linear Guide	Recirculating Ball Linear Guide	Recirculating ball bearing
Maximum Current Draw	1200 mA	1200 mA	350 mA
Power Supply	24-48 VDC	24-48 VDC	24-48 VDC
Power Plug	2-pin screw terminal	2-pin screw terminal	2-pin Screw Terminal
Motor Steps Per Rev	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	2300 mA/phase	2300 mA/phase	600 mA/phase
Inductance	2.8 mH/phase	2.8 mH/phase	3.5 mH/phase
Default Resolution	1/64 of a step	1/64 of a step	1/64 of a step
Data Cable Connection	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8
Limit or Home Sensing	Magnetic home sensor	Magnetic home sensor	Magnetic hall sensor
Manual Control	Indexed knob with push switch	Indexed knob with push switch	Yes
Axes of Motion	1	1
LED Indicators	Yes	Yes	Yes
Mounting Interface	M6 and M3 threaded holes	M6 and M3 threaded holes	M6 and M4 threaded holes
Vacuum Compatible	No	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	1 to 50 degrees C
RoHS Compliant	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes
Tranvel Range	75 ~ 600 mm	75 ~ 600 mm	100 ~200 nm
Accuracy	13 ~ 15 um	13 ~ 15 um	15 um
Maximum Speed	40 ~ 205 mm/s	40 ~ 205 mm/s	25 ~ 100 mm/s
Maximum Continuous Thrust	100 ~ 200 N	100 ~ 200 N	25 N

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P014E1	X-LRQ075AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 75 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P015E1	X-LRQ150AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 150 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P016E1	X-LRQ300AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 300 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P017E1	X-LRQ450AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 450 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P018E1	X-LRQ600AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 600 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P019E1	X-LSQ075A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 75 mm travel, fine resolution, low speed
DAU-MMOTILIS-P020E1	X-LSQ150A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 150 mm travel, fine resolution, low speed
DAU-MMOTILIS-P021E1	X-LSQ300A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 300 mm travel, fine resolution, low speed
DAU-MMOTILIS-P022E1	X-LSQ450A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 450 mm travel, fine resolution, low speed
DAU-MMOTILIS-P023E1	X-LSQ600A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 600 mm travel, fine resolution, low speed
DAU-MMOTILIS-P024E1	X-BLQ0070-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 70 mm travel
DAU-MMOTILIS-P025E1	X-BLQ0295-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 295 mm travel
DAU-MMOTILIS-P026E1	X-BLQ0595-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 595 mm travel
DAU-MMOTILIS-P027E1	X-BLQ1495-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 1495 mm travel
DAU-MMOTILIS-P028E1	X-BLQ2095-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 2095 mm travel
DAU-MMOTILIS-P029E1	X-BLQ3000-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 3000 mm travel
DAU-MMOTILIS-P030E1	X-LRM025A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 25 mm travel, fine resolution
DAU-MMOTILIS-P031E1	X-LRM050A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 50 mm travel, fine resolution
DAU-MMOTILIS-P032E1	X-LRM100A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 100 mm travel, fine resolution
DAU-MMOTILIS-P033E1	X-LRM150A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 150 mm travel, fine resolution
DAU-MMOTILIS-P034E1	X-LRM200A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 200 mm travel, fine resolution
DAU-MMOTILIS-P035E1	X-LSM025A-E03-KX14A	Motorized linear stage, 25 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P036E1	X-LSM050A-E03-KX14A	Motorized linear stage, 50 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P037E1	X-LSM100A-E03-KX14A	Motorized linear stage, 100 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P038E1	X-LSM150A-E03-KX14A	Motorized linear stage, 150 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P039E1	X-LSM200A-E03-KX14A	Motorized linear stage, 200 mm travel, integrated motor encoder and controller, plus manual control

상세 규격 표

Specification
Specification	Value	Value	Value	Value	Value

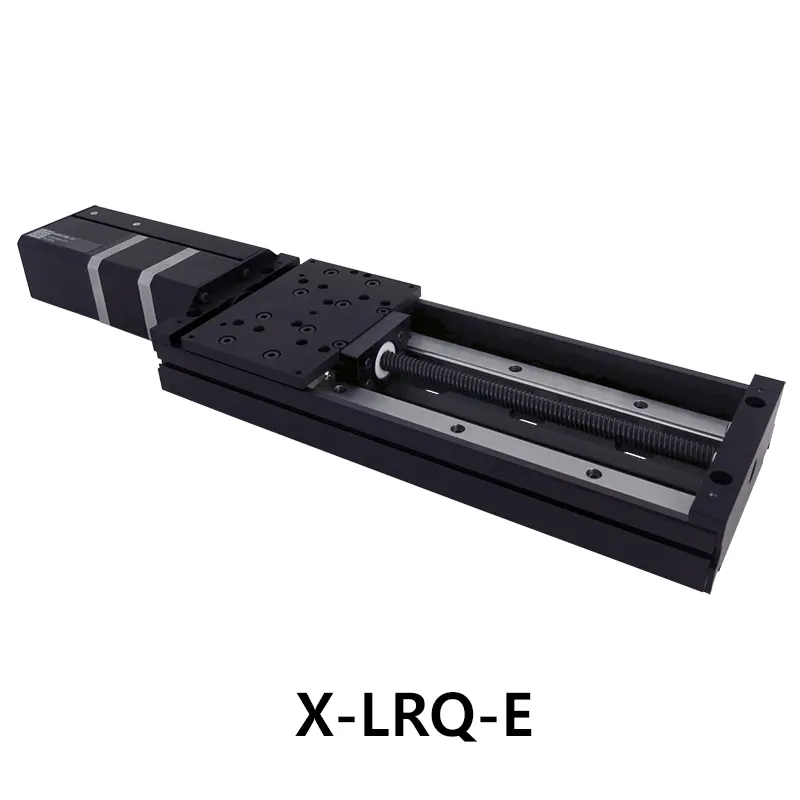

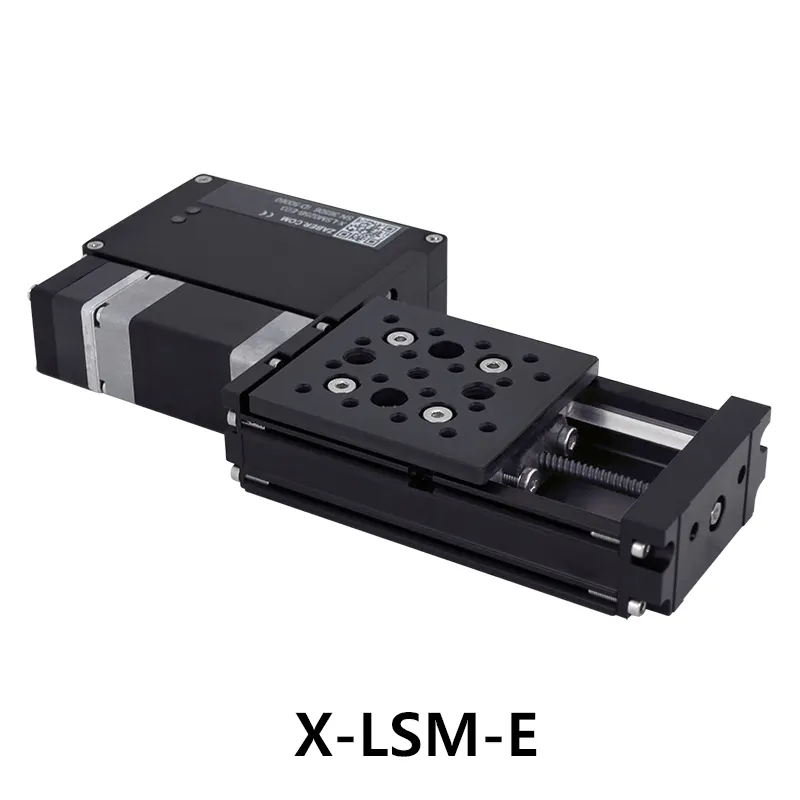

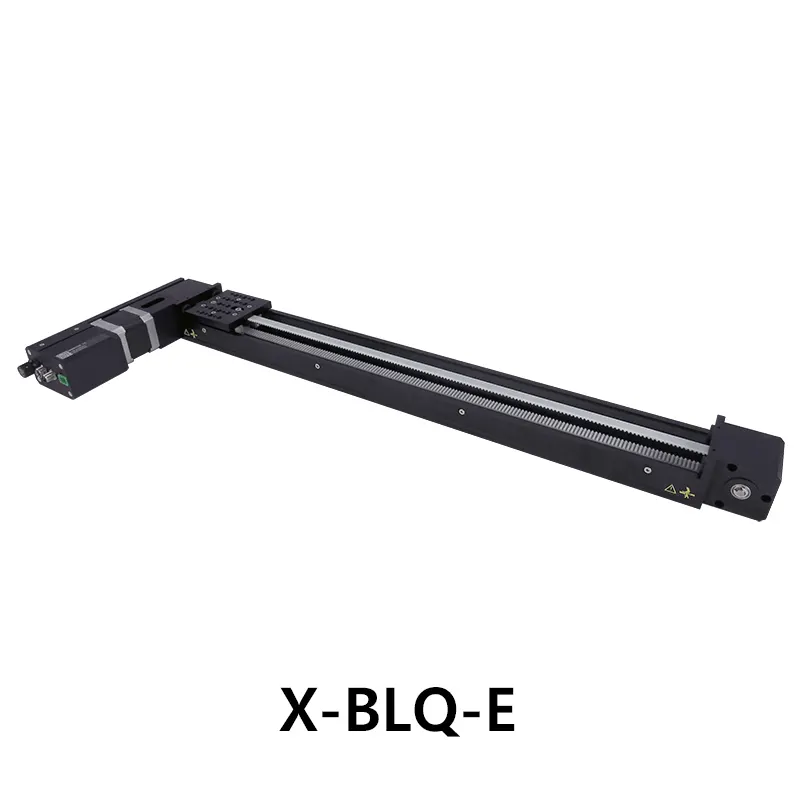

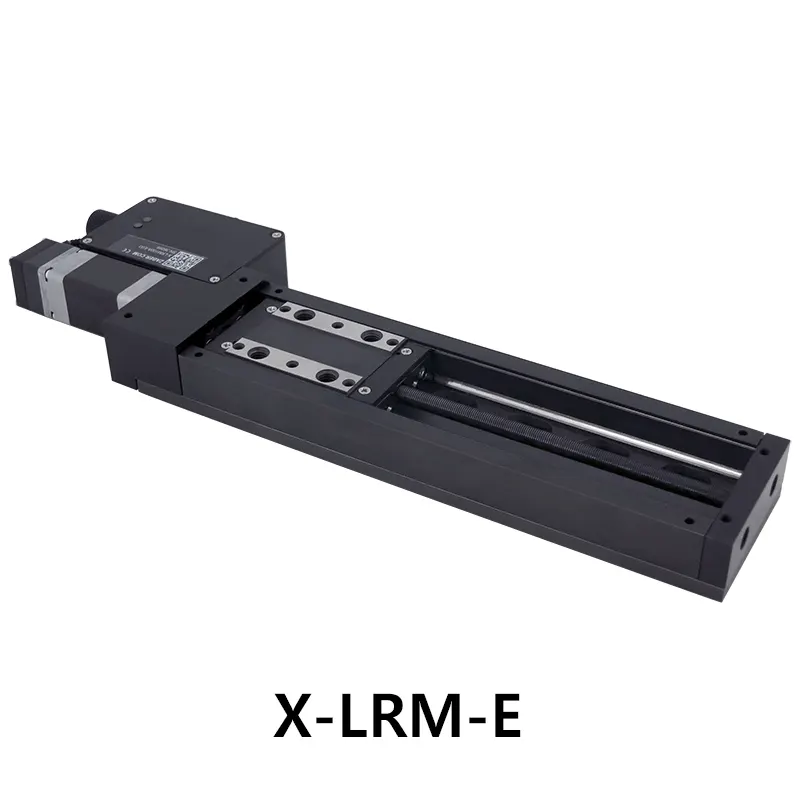

Model	X-LRQ-E series	X-LSQ-E series	X-BLQ-E sereis	X-LRM-E Series	X-LSM-E Series
Feature	Closed-loop stages with built-in stepper motors, motor encoders, and controllers	Closed-loop stages with built-in stepper motors, motor encoders, and controllers	Closed-loop, belt-driven linear stages with built-in stepper motors, motor encoders, and controllers	Miniature, steel, motorized linear stages with built-in controllers and motor encoders	Miniature motorized linear stages with built-in controllers
Built-in Controller	Yes	Yes	Yes	Yes	Yes
Encoder Resolution	500 CPR	500 CPR	500 CPR	200 CPR	200 CPR
Encoder Type	Motor mounted rotary quadrature encoder	Motor mounted rotary quadrature encoder	Motor mounted rotary quadrature encoder	Motor mounted rotary quadrature encoder	Motor Mounted Rotary Quadrature Encoder
Communication Interface	RS-232	RS-232	RS-232	RS-232, USB 2.0	RS-232
Communication Protocol	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary
Maximum Centered Load	1000 N	200 N	200 N	500 N	100 N
Maximum Cantilever Load	3000 N-cm	800 N-cm	600 N-cm	1500 N-cm	300 N-cm
Guide Type	Recirculating Ball Linear Guide	Roller bearing	Roller bearing	Recirculating ball bearing	Needle roller bearing
Maximum Current Draw	1200 mA	810 mA	1100 mA	350 mA	350 mA
Power Supply	24-48 VDC	24-48 VDC	24-48 VDC	24-48 VDC	24-48 VDC
Power Plug	2-pin screw terminal	2-pin Screw Terminal	53.97 mm	2-pin Screw Terminal	2-pin Screw Terminal
Motor Steps Per Rev	200	200	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	2300 mA/phase	1250 mA/phase	1250 mA/phase	600 mA/phase	600 mA/phase
Inductance	2.8 mH/phase	2.8 mH/phase	2.8 mH/phase	3.5 mH/phase	3.5 mH/phase
Default Resolution	1/64 of a step	1/64 of a step	1/64 of a step	1/64 of a step	1/64 of a step
Data Cable Connection	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8
Limit or Home Sensing	Magnetic home sensor	Magnetic home sensor	Magnetic home sensor	Magnetic hall sensor	Magnetic hall sensor
Manual Control	Indexed knob with push switch	Indexed knob with push switch	Indexed knob with push switch	Indexed knob with push switch	Indexed knob with push switch
Mounting Interface	M6 and M3 threaded holes	M6 threaded holes and 8-32 threaded holes	M6 threaded holes and 8-32 threaded holes	M3 and M6 threaded holes	M3 and M6 threaded holes and M4 threaded centre hole
Vacuum Compatible	No	No	No	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C
Stage Parallelism		< 100 µm	< 100 µm	< 10 µm	< 25 µm
RoHS Compliant	Yes	Yes	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes	Yes	Yes
Tranvel Range	75 ~ 600 mm	75 ~ 600 mm	70 ~ 3,000 mm	25 ~ 200 mm	25.4 ~ 203.2 mm
Accuracy	15 ~ 150 um	15 ~ 150 um	200 ~ 3,000 um	8 ~60 um	8 ~ 61 um
Maximum Speed	40 ~ 840 mm/s	42 ~ 1,000 mm/s	1,100 ~ 2,000 mm/s	25 ~ 100 mm/s	26 ~ 104 mm/s
Maximum Continuous Thrust	25 ~ 200 N	18 ~ 100 N	20 N	25 N	25 N

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P040E1	X-LSQ075A-KX14C	Motorized linear stage, integrated controller, 75 mm travel, fine resolution, low speed
DAU-MMOTILIS-P041E1	X-LSQ150A-KX14C	Motorized linear stage, integrated controller, 150 mm travel, fine resolution, low speed
DAU-MMOTILIS-P042E1	X-LSQ300A-KX14C	Motorized linear stage, integrated controller, 300 mm travel, fine resolution, low speed
DAU-MMOTILIS-P043E1	X-LSQ450A-KX14C	Motorized linear stage, integrated controller, 450 mm travel, fine resolution, low speed
DAU-MMOTILIS-P044E1	X-LSQ600A-KX14C	Motorized linear stage, integrated controller, 600 mm travel, fine resolution, low speed
DAU-MMOTILIS-P045E1	X-LRM025A-KX14A	Motorized linear stage, integrated controller, 25 mm travel, fine resolution
DAU-MMOTILIS-P046E1	X-LRM050A-KX14A	Motorized linear stage, integrated controller, 50 mm travel, fine resolution
DAU-MMOTILIS-P047E1	X-LRM100A-KX14A	Motorized linear stage, integrated controller, 100 mm travel, fine resolution
DAU-MMOTILIS-P048E1	X-LRM150A-KX14A	Motorized linear stage, integrated controller, 150 mm travel, fine resolution
DAU-MMOTILIS-P049E1	X-LRM200A-KX14A	Motorized linear stage, integrated controller, 200 mm travel, fine resolution
DAU-MMOTILIS-P050E1	X-LSM025A-KX14A	Motorized linear stage, 25 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P051E1	X-LSM050A-KX14A	Motorized linear stage, 50 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P052E1	X-LSM100A-KX14A	Motorized linear stage, 100 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P053E1	X-LSM150A-KX14A	Motorized linear stage, 150 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P054E1	X-LSM200A-KX14A	Motorized linear stage, 200 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P055E1	X-LHM025A-KX14A	Motorized linear stage, 25 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P056E1	X-LHM050A-KX14A	Motorized linear stage, 50 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P057E1	X-LHM100A-KX14A	Motorized linear stage, 100 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P058E1	X-LHM150A-KX14A	Motorized linear stage, 150 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P059E1	X-LHM200A-KX14A	Motorized linear stage, 200 mm travel, integrated controller, plus manual control

상세 규격 표

Specification
Specification	Value	Value	Value	Value

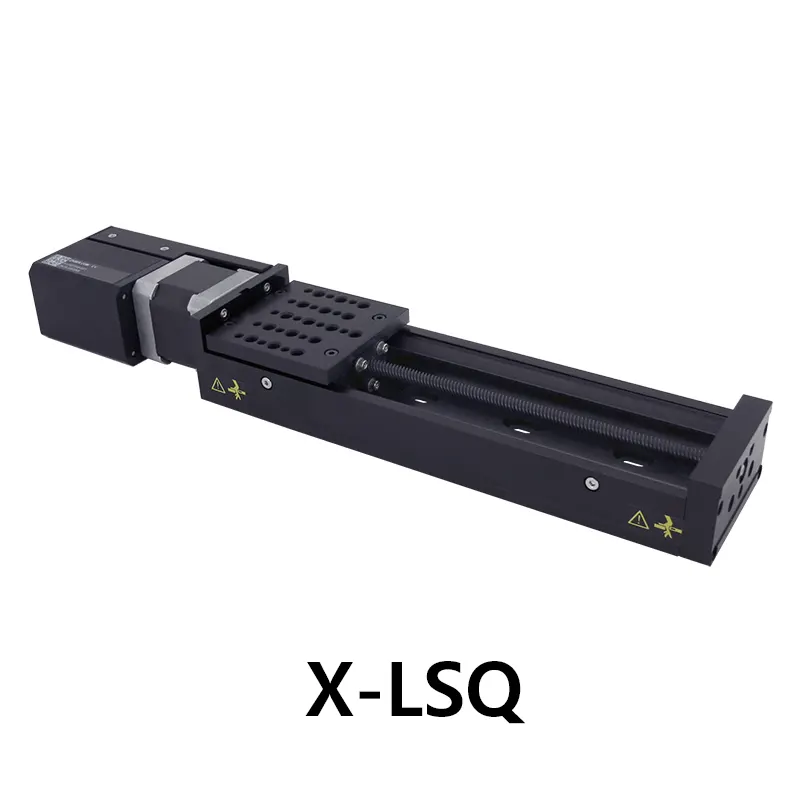

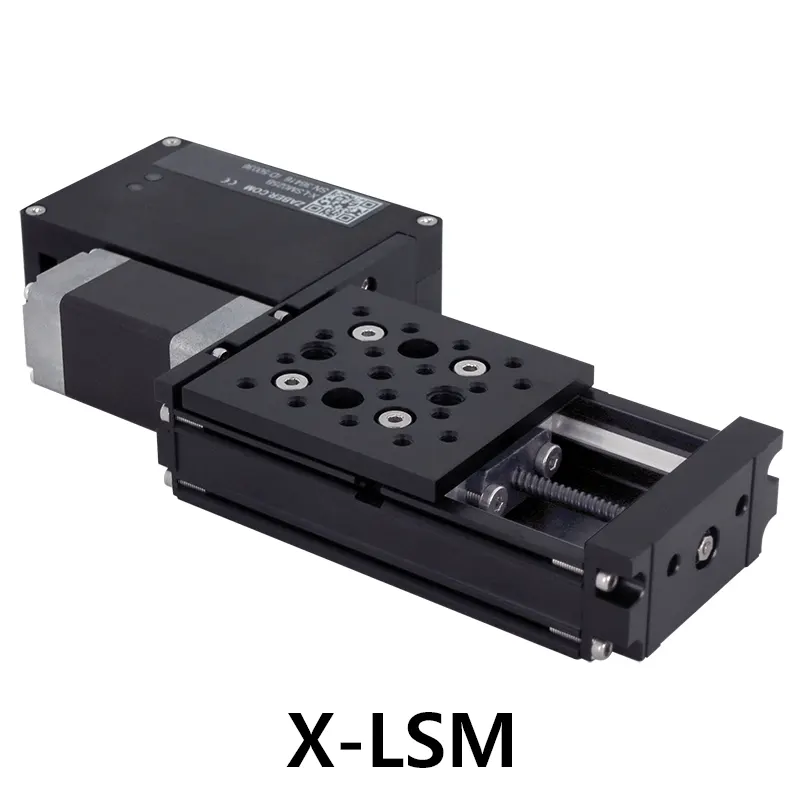

Model	X-LSQ series	X-LRM series	X-LSM series	X-LHM series
Feature	Motorized linear stages with built-in controllers	Miniature, steel, motorized linear stages with built-in controllers	Miniature motorized linear stages with built-in controllers	Motorized linear stages with built-in controllers
Built-in Controller	Yes	Yes	Yes	Yes
Encoder Type	None	None	None	None
Communication Interface	RS-232	RS-232, USB 2.0	RS-232	RS-232
Communication Protocol	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary
Maximum Centered Load	200 N	500 N	100 N	30 N
Maximum Cantilever Load	800 N-cm	1500 N-cm	300 N-cm	50 N-cm
Guide Type	Roller bearing	Recirculating ball bearing	Needle roller bearing	Plain bearing
Vertical Runout	< 13 µm	< 8 µm	< 8 µm
Horizontal Runout	< 13 µm	< 12 µm	< 12 µm
Maximum Current Draw	810 mA	350 mA	350 mA	350 mA
Power Supply	24-48 VDC	24-48 VDC	24-48 VDC	24-48 VDC
Power Plug	2-pin Screw Terminal	2-pin Screw Terminal	2-pin Screw Terminal	2-pin Screw Terminal
Motor Steps Per Rev	200	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	1250 mA/phase	600 mA/phase	600 mA/phase	600 mA/phase
Inductance	2.8 mH/phase	3.5 mH/phase	3.5 mH/phase	3.5 mH/phase
Default Resolution	1/64 of a step	1/64 of a step	1/64 of a step	1/64 of a step
Data Cable Connection	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8
Mechanical Drive System	Precision lead screw	Precision lead screw	Precision lead screw	Lead screw
Limit or Home Sensing	Magnetic home sensor	Magnetic hall sensor	Magnetic hall sensor	Magnetic hall sensor
Manual Control	Indexed knob with push switch	Yes	Yes
Mounting Interface	M6 threaded holes and 8-32 threaded holes	M3 and M6 threaded holes	M3 and M6 threaded holes and M4 threaded center hole	M3 threaded holes
Vacuum Compatible	No	No	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C
Stage Parallelism	< 100 µm	< 10 µm	< 25 µm
RoHS Compliant	Yes	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes	Yes
Tranvel Range	75 ~ 600 mm	25 ~ 200 mm	25.4 ~ 203.2 mm	25.4 ~ 203.2 mm
Accuracy	15 ~ 150 um	8 ~ 60 um	8 ~ 61 um	50 ~ 225 um
Maximum Speed	42 ~ 1,000 mm/s	25 ~ 100 mm/s	26 ~ 104 mm/s	65 mm/s
Maximum Continuous Thrust	18 ~ 100 N	25 N	25 N	25 N

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P060E1	LSM025A-T4-MC04	Motorized linear stage, 25 mm travel (controller required)
DAU-MMOTILIS-P061E1	LSM050A-T4-MC04	Motorized linear stage, 50 mm travel (controller required)
DAU-MMOTILIS-P062E1	LSM100A-T4-MC04	Motorized linear stage, 100 mm travel (controller required)
DAU-MMOTILIS-P063E1	LSM150A-T4-MC04	Motorized linear stage, 150 mm travel (controller required)
DAU-MMOTILIS-P064E1	LSM200A-T4-MC04	Motorized linear stage, 200 mm travel (controller required)
DAU-MMOTILIS-P065E1	LST0250A-T3-MC03	Motorized linear stage, 250 mm travel, fine resolution, low speed
DAU-MMOTILIS-P066E1	LST0500A-T3-MC03	Motorized linear stage, 500 mm travel, fine resolution, low speed
DAU-MMOTILIS-P067E1	LST0750A-T3-MC03	Motorized linear stage, 750 mm travel, fine resolution, low speed
DAU-MMOTILIS-P068E1	LST1000A-T3-MC03	Motorized linear stage, 1000 mm travel, fine resolution, low speed
DAU-MMOTILIS-P069E1	LST1500A-T3-MC03	Motorized linear stage, 1500 mm travel, fine resolution, low speed
DAU-MMOTILIS-P070E1	LSA10A-T4-MC04	Motorized linear stage, 10 mm travel (controller required)
DAU-MMOTILIS-P071E1	LSA25A-T4-MC04	Motorized linear stage, 25 mm travel (controller required)

상세 규격 표

Specification
Specification	Value	Value	Value
Model	LSM series	LST series	LSA series
Feature	Miniature motorized linear stages	High-load, motorized linear stages	Micro motorized linear stages
Built-in Controller	No	No	No
Recommended Controller	X-MCB1 (48 V) Recommended	X-MCB1 (48 V) Recommended	X-MCB1 (48 V) Recommended
Encoder Type	None	None	None
Maximum Centered Load	100 N	1000 N
Maximum Cantilever Load	300 N-cm	3000 N-cm
Guide Type	Needle roller bearing	Roller bearing	Ball bearing
Vertical Runout	< 8 µm	< 13 µm	< 4 µm
Horizontal Runout	< 12 µm	< 13 µm	< 13 µm
Motor Steps Per Rev	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	600 mA/phase	2100 mA/phase	240 mA/phase
Inductance	3.5 mH/phase	6.4 mH/phase	5 mH/phase
Mechanical Drive System	Precision lead screw	Precision lead screw	Precision lead screw
Mounting Interface	M3 and M6 threaded holes and M4 threaded center hole	M6 and M3 threaded holes	M2 and M3 threaded holes and M4 threaded centre hole
Limit or Home Sensing	Magnetic hall sensor	Magnetic home sensor	Magnetic hall sensor
Vacuum Compatible	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C
RoHS Compliant	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes
Tranvel Range	25.4 ~ 203.2 mm	254 ~ 1500 mm	10 or 25 mm
Accuracy	8 ~ 61 um	63 ~ 375 um	18 or 24 um
Maximum Speed	26 ~ 104 mm/s	22 ~ 420 mm/s	10 mm/s
Maximum Continuous Thrust	25 N	80 ~ 560 N	25 N

배송/설치 가능 지역

코스모랩스는 서울 전 지역, 경기·인천 등 수도권과 부산, 대구, 대전, 광주, 울산, 세종, 청주, 천안, 아산, 전주, 원주 등 전국 주요 연구·산업 지역으로 실험실 장비 납품 상담을 제공합니다.

대형 장비와 설치형 장비는 반입 동선, 엘리베이터, 전원, 배수, 설치 공간을 확인한 뒤 배송/설치 일정을 안내합니다.

서울·수도권 전체 지역 보기

서울 전 지역

강남구, 강동구, 강북구, 강서구, 관악구, 광진구, 구로구, 금천구, 노원구, 도봉구, 동대문구, 동작구, 마포구, 서대문구, 서초구, 성동구, 성북구, 송파구, 양천구, 영등포구, 용산구, 은평구, 종로구, 중구, 중랑구

경기 주요 지역

수원시, 성남시, 의정부시, 안양시, 부천시, 광명시, 평택시, 동두천시, 안산시, 고양시, 과천시, 구리시, 남양주시, 오산시, 시흥시, 군포시, 의왕시, 하남시, 용인시, 파주시, 이천시, 안성시, 김포시, 화성시, 광주시, 양주시, 포천시, 여주시, 연천군, 가평군, 양평군

인천 전 지역

중구, 동구, 미추홀구, 연수구, 남동구, 부평구, 계양구, 서구, 강화군, 옹진군

지방 주요 연구·산업 지역

부산, 대구, 대전, 광주, 울산, 세종, 청주, 천안, 아산, 오송, 오창, 원주, 춘천, 강릉, 전주, 익산, 군산, 여수, 순천, 창원, 김해, 양산, 포항, 구미, 제주

FAQ

어떤 이동 거리 옵션이 있나요?

75mm, 150mm, 300mm, 450mm, 600mm의 5가지 이동 거리 옵션을 제공하며, 각각 개방형과 커버형으로 선택할 수 있습니다.

별도의 컨트롤러가 필요한가요?

아니요, 컨트롤러와 리니어 엔코더가 내장되어 있어 별도의 제어 장치 없이 사용할 수 있습니다.

커버형과 개방형의 차이는 무엇인가요?

커버형은 먼지나 오염으로부터 보호가 필요한 환경에 적합하며, 개방형은 일반적인 실험실 환경에서 사용하기 적합합니다.

어떤 구동 방식을 사용하나요?

리드스크류(Lead-screw) 방식을 사용하며, 고정밀·저속 특성과 인라인 드라이브 구조를 갖추고 있습니다.

상품 설명

핵심 특징

내장제어

컨트롤러와 리니어 엔코더 내장으로 즉시 사용

다양한거리

75, 150, 300, 450, 600mm 이동 거리 선택

고정밀

리드스크류 방식의 정밀한 위치 제어

커버옵션

개방형 및 커버형 모델로 환경에 맞게 선택

기술 사양

이동 거리: 75, 150, 300, 450, 600 mm
구동 방식: Lead-screw driven
엔코더: Linear encoder (내장)
컨트롤러: Built-in controller
특성: Fine resolution, Low speed
드라이브: Inline drive
타입: 개방형 / 커버형

상세 규격표

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P001E1	X-LRQ075AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P002E1	X-LRQ150AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 150 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P003E1	X-LRQ300AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 300 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P004E1	X-LRQ450AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 450 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P005E1	X-LRQ600AL-DE51-KX14C	Motorized, lead-screw driven, linear stage, 600 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P006E1	X-LRQ075AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 75 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P007E1	X-LRQ150AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 150 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P008E1	X-LRQ300AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 300 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P009E1	X-LRQ450AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 450 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P010E1	X-LRQ600AL-DE51C-KX14C	Motorized, lead-screw driven, covered linear stage, linear stage, 600 mm travel, integrated linear encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P011E1	X-LRM100A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 100 mm travel, fine resolution
DAU-MMOTILIS-P012E1	X-LRM150A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 150 mm travel, fine resolution
DAU-MMOTILIS-P013E1	X-LRM200A-DE51-KX14A	Motorized linear stage, integrated controller and linear encoder, 200 mm travel, fine resolution

상세 규격 표

Specification
Specification	Value	Value	Value
Model	X-LRQ-DE series	X-LRQ-DEC series	X-LRM-DE series
Feature	High precision stages with built-in controllers and linear encoders	High precision stages with built-in controllers and linear encoders with dust cover	Miniature, steel, motorized linear stages with built-in controllers and linear encoders.
Built-in Controller	Yes	Yes	Yes
Encoder Type	Linear quadrature encoder	Linear quadrature encoder	Linear quadrature encoder
Encoder Resolution	50 nm	50 nm
Communication Interface	RS-232	RS-232	RS-232, USB 2.0
Communication Protocol	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary
Maximum Centered Load	1000 N	1000 N	500 N
Maximum Cantilever Load	3000 N-cm	3000 N-cm	1500 N-cm
Guide Type	Recirculating Ball Linear Guide	Recirculating Ball Linear Guide	Recirculating ball bearing
Maximum Current Draw	1200 mA	1200 mA	350 mA
Power Supply	24-48 VDC	24-48 VDC	24-48 VDC
Power Plug	2-pin screw terminal	2-pin screw terminal	2-pin Screw Terminal
Motor Steps Per Rev	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	2300 mA/phase	2300 mA/phase	600 mA/phase
Inductance	2.8 mH/phase	2.8 mH/phase	3.5 mH/phase
Default Resolution	1/64 of a step	1/64 of a step	1/64 of a step
Data Cable Connection	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8
Limit or Home Sensing	Magnetic home sensor	Magnetic home sensor	Magnetic hall sensor
Manual Control	Indexed knob with push switch	Indexed knob with push switch	Yes
Axes of Motion	1	1
LED Indicators	Yes	Yes	Yes
Mounting Interface	M6 and M3 threaded holes	M6 and M3 threaded holes	M6 and M4 threaded holes
Vacuum Compatible	No	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	1 to 50 degrees C
RoHS Compliant	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes
Tranvel Range	75 ~ 600 mm	75 ~ 600 mm	100 ~200 nm
Accuracy	13 ~ 15 um	13 ~ 15 um	15 um
Maximum Speed	40 ~ 205 mm/s	40 ~ 205 mm/s	25 ~ 100 mm/s
Maximum Continuous Thrust	100 ~ 200 N	100 ~ 200 N	25 N

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P014E1	X-LRQ075AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 75 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P015E1	X-LRQ150AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 150 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P016E1	X-LRQ300AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 300 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P017E1	X-LRQ450AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 450 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P018E1	X-LRQ600AL-E01-KX14C	Motorized, lead-screw driven, linear stage, 600 mm travel, integrated motor encoder and controller, fine resolution, low speed, inline drive
DAU-MMOTILIS-P019E1	X-LSQ075A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 75 mm travel, fine resolution, low speed
DAU-MMOTILIS-P020E1	X-LSQ150A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 150 mm travel, fine resolution, low speed
DAU-MMOTILIS-P021E1	X-LSQ300A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 300 mm travel, fine resolution, low speed
DAU-MMOTILIS-P022E1	X-LSQ450A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 450 mm travel, fine resolution, low speed
DAU-MMOTILIS-P023E1	X-LSQ600A-E01-KX14C	Motorized linear stage, integrated motor encoder and controller, 600 mm travel, fine resolution, low speed
DAU-MMOTILIS-P024E1	X-BLQ0070-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 70 mm travel
DAU-MMOTILIS-P025E1	X-BLQ0295-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 295 mm travel
DAU-MMOTILIS-P026E1	X-BLQ0595-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 595 mm travel
DAU-MMOTILIS-P027E1	X-BLQ1495-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 1495 mm travel
DAU-MMOTILIS-P028E1	X-BLQ2095-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 2095 mm travel
DAU-MMOTILIS-P029E1	X-BLQ3000-E01-KX14C-SN2	Motorized, belt-driven, linear stage, integrated motor encoder and controller, 3000 mm travel
DAU-MMOTILIS-P030E1	X-LRM025A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 25 mm travel, fine resolution
DAU-MMOTILIS-P031E1	X-LRM050A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 50 mm travel, fine resolution
DAU-MMOTILIS-P032E1	X-LRM100A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 100 mm travel, fine resolution
DAU-MMOTILIS-P033E1	X-LRM150A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 150 mm travel, fine resolution
DAU-MMOTILIS-P034E1	X-LRM200A-E03-KX14A	Motorized linear stage, integrated controller and motor encoder, 200 mm travel, fine resolution
DAU-MMOTILIS-P035E1	X-LSM025A-E03-KX14A	Motorized linear stage, 25 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P036E1	X-LSM050A-E03-KX14A	Motorized linear stage, 50 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P037E1	X-LSM100A-E03-KX14A	Motorized linear stage, 100 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P038E1	X-LSM150A-E03-KX14A	Motorized linear stage, 150 mm travel, integrated motor encoder and controller, plus manual control
DAU-MMOTILIS-P039E1	X-LSM200A-E03-KX14A	Motorized linear stage, 200 mm travel, integrated motor encoder and controller, plus manual control

상세 규격 표

Specification
Specification	Value	Value	Value	Value	Value
Model	X-LRQ-E series	X-LSQ-E series	X-BLQ-E sereis	X-LRM-E Series	X-LSM-E Series
Feature	Closed-loop stages with built-in stepper motors, motor encoders, and controllers	Closed-loop stages with built-in stepper motors, motor encoders, and controllers	Closed-loop, belt-driven linear stages with built-in stepper motors, motor encoders, and controllers	Miniature, steel, motorized linear stages with built-in controllers and motor encoders	Miniature motorized linear stages with built-in controllers
Built-in Controller	Yes	Yes	Yes	Yes	Yes
Encoder Resolution	500 CPR	500 CPR	500 CPR	200 CPR	200 CPR
Encoder Type	Motor mounted rotary quadrature encoder	Motor mounted rotary quadrature encoder	Motor mounted rotary quadrature encoder	Motor mounted rotary quadrature encoder	Motor Mounted Rotary Quadrature Encoder
Communication Interface	RS-232	RS-232	RS-232	RS-232, USB 2.0	RS-232
Communication Protocol	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary
Maximum Centered Load	1000 N	200 N	200 N	500 N	100 N
Maximum Cantilever Load	3000 N-cm	800 N-cm	600 N-cm	1500 N-cm	300 N-cm
Guide Type	Recirculating Ball Linear Guide	Roller bearing	Roller bearing	Recirculating ball bearing	Needle roller bearing
Maximum Current Draw	1200 mA	810 mA	1100 mA	350 mA	350 mA
Power Supply	24-48 VDC	24-48 VDC	24-48 VDC	24-48 VDC	24-48 VDC
Power Plug	2-pin screw terminal	2-pin Screw Terminal	53.97 mm	2-pin Screw Terminal	2-pin Screw Terminal
Motor Steps Per Rev	200	200	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	2300 mA/phase	1250 mA/phase	1250 mA/phase	600 mA/phase	600 mA/phase
Inductance	2.8 mH/phase	2.8 mH/phase	2.8 mH/phase	3.5 mH/phase	3.5 mH/phase
Default Resolution	1/64 of a step	1/64 of a step	1/64 of a step	1/64 of a step	1/64 of a step
Data Cable Connection	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8
Limit or Home Sensing	Magnetic home sensor	Magnetic home sensor	Magnetic home sensor	Magnetic hall sensor	Magnetic hall sensor
Manual Control	Indexed knob with push switch	Indexed knob with push switch	Indexed knob with push switch	Indexed knob with push switch	Indexed knob with push switch
Mounting Interface	M6 and M3 threaded holes	M6 threaded holes and 8-32 threaded holes	M6 threaded holes and 8-32 threaded holes	M3 and M6 threaded holes	M3 and M6 threaded holes and M4 threaded centre hole
Vacuum Compatible	No	No	No	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C
Stage Parallelism		< 100 µm	< 100 µm	< 10 µm	< 25 µm
RoHS Compliant	Yes	Yes	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes	Yes	Yes
Tranvel Range	75 ~ 600 mm	75 ~ 600 mm	70 ~ 3,000 mm	25 ~ 200 mm	25.4 ~ 203.2 mm
Accuracy	15 ~ 150 um	15 ~ 150 um	200 ~ 3,000 um	8 ~60 um	8 ~ 61 um
Maximum Speed	40 ~ 840 mm/s	42 ~ 1,000 mm/s	1,100 ~ 2,000 mm/s	25 ~ 100 mm/s	26 ~ 104 mm/s
Maximum Continuous Thrust	25 ~ 200 N	18 ~ 100 N	20 N	25 N	25 N

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P040E1	X-LSQ075A-KX14C	Motorized linear stage, integrated controller, 75 mm travel, fine resolution, low speed
DAU-MMOTILIS-P041E1	X-LSQ150A-KX14C	Motorized linear stage, integrated controller, 150 mm travel, fine resolution, low speed
DAU-MMOTILIS-P042E1	X-LSQ300A-KX14C	Motorized linear stage, integrated controller, 300 mm travel, fine resolution, low speed
DAU-MMOTILIS-P043E1	X-LSQ450A-KX14C	Motorized linear stage, integrated controller, 450 mm travel, fine resolution, low speed
DAU-MMOTILIS-P044E1	X-LSQ600A-KX14C	Motorized linear stage, integrated controller, 600 mm travel, fine resolution, low speed
DAU-MMOTILIS-P045E1	X-LRM025A-KX14A	Motorized linear stage, integrated controller, 25 mm travel, fine resolution
DAU-MMOTILIS-P046E1	X-LRM050A-KX14A	Motorized linear stage, integrated controller, 50 mm travel, fine resolution
DAU-MMOTILIS-P047E1	X-LRM100A-KX14A	Motorized linear stage, integrated controller, 100 mm travel, fine resolution
DAU-MMOTILIS-P048E1	X-LRM150A-KX14A	Motorized linear stage, integrated controller, 150 mm travel, fine resolution
DAU-MMOTILIS-P049E1	X-LRM200A-KX14A	Motorized linear stage, integrated controller, 200 mm travel, fine resolution
DAU-MMOTILIS-P050E1	X-LSM025A-KX14A	Motorized linear stage, 25 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P051E1	X-LSM050A-KX14A	Motorized linear stage, 50 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P052E1	X-LSM100A-KX14A	Motorized linear stage, 100 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P053E1	X-LSM150A-KX14A	Motorized linear stage, 150 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P054E1	X-LSM200A-KX14A	Motorized linear stage, 200 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P055E1	X-LHM025A-KX14A	Motorized linear stage, 25 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P056E1	X-LHM050A-KX14A	Motorized linear stage, 50 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P057E1	X-LHM100A-KX14A	Motorized linear stage, 100 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P058E1	X-LHM150A-KX14A	Motorized linear stage, 150 mm travel, integrated controller, plus manual control
DAU-MMOTILIS-P059E1	X-LHM200A-KX14A	Motorized linear stage, 200 mm travel, integrated controller, plus manual control

상세 규격 표

Specification
Specification	Value	Value	Value	Value
Model	X-LSQ series	X-LRM series	X-LSM series	X-LHM series
Feature	Motorized linear stages with built-in controllers	Miniature, steel, motorized linear stages with built-in controllers	Miniature motorized linear stages with built-in controllers	Motorized linear stages with built-in controllers
Built-in Controller	Yes	Yes	Yes	Yes
Encoder Type	None	None	None	None
Communication Interface	RS-232	RS-232, USB 2.0	RS-232	RS-232
Communication Protocol	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary	Zaber ASCII (Default), Zaber Binary
Maximum Centered Load	200 N	500 N	100 N	30 N
Maximum Cantilever Load	800 N-cm	1500 N-cm	300 N-cm	50 N-cm
Guide Type	Roller bearing	Recirculating ball bearing	Needle roller bearing	Plain bearing
Vertical Runout	< 13 µm	< 8 µm	< 8 µm
Horizontal Runout	< 13 µm	< 12 µm	< 12 µm
Maximum Current Draw	810 mA	350 mA	350 mA	350 mA
Power Supply	24-48 VDC	24-48 VDC	24-48 VDC	24-48 VDC
Power Plug	2-pin Screw Terminal	2-pin Screw Terminal	2-pin Screw Terminal	2-pin Screw Terminal
Motor Steps Per Rev	200	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	1250 mA/phase	600 mA/phase	600 mA/phase	600 mA/phase
Inductance	2.8 mH/phase	3.5 mH/phase	3.5 mH/phase	3.5 mH/phase
Default Resolution	1/64 of a step	1/64 of a step	1/64 of a step	1/64 of a step
Data Cable Connection	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8	Locking 4-pin M8
Mechanical Drive System	Precision lead screw	Precision lead screw	Precision lead screw	Lead screw
Limit or Home Sensing	Magnetic home sensor	Magnetic hall sensor	Magnetic hall sensor	Magnetic hall sensor
Manual Control	Indexed knob with push switch	Yes	Yes
Mounting Interface	M6 threaded holes and 8-32 threaded holes	M3 and M6 threaded holes	M3 and M6 threaded holes and M4 threaded center hole	M3 threaded holes
Vacuum Compatible	No	No	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C
Stage Parallelism	< 100 µm	< 10 µm	< 25 µm
RoHS Compliant	Yes	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes	Yes
Tranvel Range	75 ~ 600 mm	25 ~ 200 mm	25.4 ~ 203.2 mm	25.4 ~ 203.2 mm
Accuracy	15 ~ 150 um	8 ~ 60 um	8 ~ 61 um	50 ~ 225 um
Maximum Speed	42 ~ 1,000 mm/s	25 ~ 100 mm/s	26 ~ 104 mm/s	65 mm/s
Maximum Continuous Thrust	18 ~ 100 N	25 N	25 N	25 N

상세 규격 표

카탈로그넘버	Model	Description
DAU-MMOTILIS-P060E1	LSM025A-T4-MC04	Motorized linear stage, 25 mm travel (controller required)
DAU-MMOTILIS-P061E1	LSM050A-T4-MC04	Motorized linear stage, 50 mm travel (controller required)
DAU-MMOTILIS-P062E1	LSM100A-T4-MC04	Motorized linear stage, 100 mm travel (controller required)
DAU-MMOTILIS-P063E1	LSM150A-T4-MC04	Motorized linear stage, 150 mm travel (controller required)
DAU-MMOTILIS-P064E1	LSM200A-T4-MC04	Motorized linear stage, 200 mm travel (controller required)
DAU-MMOTILIS-P065E1	LST0250A-T3-MC03	Motorized linear stage, 250 mm travel, fine resolution, low speed
DAU-MMOTILIS-P066E1	LST0500A-T3-MC03	Motorized linear stage, 500 mm travel, fine resolution, low speed
DAU-MMOTILIS-P067E1	LST0750A-T3-MC03	Motorized linear stage, 750 mm travel, fine resolution, low speed
DAU-MMOTILIS-P068E1	LST1000A-T3-MC03	Motorized linear stage, 1000 mm travel, fine resolution, low speed
DAU-MMOTILIS-P069E1	LST1500A-T3-MC03	Motorized linear stage, 1500 mm travel, fine resolution, low speed
DAU-MMOTILIS-P070E1	LSA10A-T4-MC04	Motorized linear stage, 10 mm travel (controller required)
DAU-MMOTILIS-P071E1	LSA25A-T4-MC04	Motorized linear stage, 25 mm travel (controller required)

상세 규격 표

Specification
Specification	Value	Value	Value
Model	LSM series	LST series	LSA series
Feature	Miniature motorized linear stages	High-load, motorized linear stages	Micro motorized linear stages
Built-in Controller	No	No	No
Recommended Controller	X-MCB1 (48 V) Recommended	X-MCB1 (48 V) Recommended	X-MCB1 (48 V) Recommended
Encoder Type	None	None	None
Maximum Centered Load	100 N	1000 N
Maximum Cantilever Load	300 N-cm	3000 N-cm
Guide Type	Needle roller bearing	Roller bearing	Ball bearing
Vertical Runout	< 8 µm	< 13 µm	< 4 µm
Horizontal Runout	< 12 µm	< 13 µm	< 13 µm
Motor Steps Per Rev	200	200	200
Motor Type	Stepper (2 phase)	Stepper (2 phase)	Stepper (2 phase)
Motor Rated Current	600 mA/phase	2100 mA/phase	240 mA/phase
Inductance	3.5 mH/phase	6.4 mH/phase	5 mH/phase
Mechanical Drive System	Precision lead screw	Precision lead screw	Precision lead screw
Mounting Interface	M3 and M6 threaded holes and M4 threaded center hole	M6 and M3 threaded holes	M2 and M3 threaded holes and M4 threaded centre hole
Limit or Home Sensing	Magnetic hall sensor	Magnetic home sensor	Magnetic hall sensor
Vacuum Compatible	No	No
Operating Temperature Range	0 to 50 degrees C	0 to 50 degrees C	0 to 50 degrees C
RoHS Compliant	Yes	Yes	Yes
CE Compliant	Yes	Yes	Yes
Tranvel Range	25.4 ~ 203.2 mm	254 ~ 1500 mm	10 or 25 mm
Accuracy	8 ~ 61 um	63 ~ 375 um	18 or 24 um
Maximum Speed	26 ~ 104 mm/s	22 ~ 420 mm/s	10 mm/s
Maximum Continuous Thrust	25 N	80 ~ 560 N	25 N

주문 옵션

모델	설명	단위	단가	재고	견적
X-LRQ075AL-DE51-KX14C	linear stage 75 mm travel linear encoder and controller	EA	문의	7 Day	DAU-MMOTILIS-P001E1 견적요청 선택
X-LRQ150AL-DE51-KX14C	linear stage 150 mm travel linear encoder and controller	EA	문의	7 Day	DAU-MMOTILIS-P002E1 견적요청 선택
X-LRQ300AL-DE51-KX14C	linear stage 300 mm travel linear encoder and controller	EA	문의	7 Day	DAU-MMOTILIS-P003E1 견적요청 선택
X-LRQ450AL-DE51-KX14C	linear stage 450 mm travel linear encoder and controller	EA	문의	7 Day	DAU-MMOTILIS-P004E1 견적요청 선택
X-LRQ600AL-DE51-KX14C	linear stage 600 mm travel linear encoder and controller	EA	문의	7 Day	DAU-MMOTILIS-P005E1 견적요청 선택
X-LRQ075AL-DE51C-KX14C	covered linear stage 75 mm travel linear encoder and controller	EA	문의	7 Day	DAU-MMOTILIS-P006E1 견적요청 선택

대표 옵션 6개 표시 중

전체 71개 옵션은 별도 창에서 검색 흐름을 유지한 채 확인할 수 있습니다.

견적요청 상품

선택한 옵션 0개

배송/교환/반품 안내

배송 안내

배송 안내

재고 보유 상품은 결제 또는 견적 확정 후 영업일 기준 2~3일 내 출고를 목표로 합니다. 주문제작, 해외수입, 대형 장비, 특수 포장 상품은 견적서에 안내된 납기와 배송 조건을 따릅니다.
배송비 안내

일반 택배 상품은 기본 배송비가 적용되며, 대형 장비, 설치가 필요한 상품, 특수 포장 또는 직배송 상품은 배송비가 별도 산정될 수 있습니다.
수령 확인

상품 수령 시 외관 파손, 오배송, 누락 여부를 확인해 주세요. 이상이 있는 경우 수령 후 24시간 이내 고객센터로 접수하면 확인 절차를 안내합니다.

배송/설치 가능 지역

대형 장비와 설치형 장비는 반입 동선, 엘리베이터, 전원, 배수, 설치 공간을 확인한 뒤 배송/설치 일정을 안내합니다.

서울·수도권 전체 지역 보기

서울 전 지역

경기 주요 지역

인천 전 지역

중구, 동구, 미추홀구, 연수구, 남동구, 부평구, 계양구, 서구, 강화군, 옹진군

지방 주요 연구·산업 지역

부산, 대구, 대전, 광주, 울산, 세종, 청주, 천안, 아산, 오송, 오창, 원주, 춘천, 강릉, 전주, 익산, 군산, 여수, 순천, 창원, 김해, 양산, 포항, 구미, 제주

교환/반품/환불 안내

교환/반품 접수

상품 수령 후 7일 이내 고객센터 또는 1:1 문의로 접수할 수 있습니다. 상품 하자 또는 오배송은 확인 후 무상 교환 또는 반품 절차를 진행합니다.
청약철회 제한

주문제작품, 해외수입 발주품, 제조사/공급사 개별 발주품, 설치 준비가 시작된 장비, 개봉 또는 사용 흔적이 있는 상품은 단순 변심에 의한 취소, 교환, 반품이 제한될 수 있습니다.
환불 처리

회수 상품 검수 후 환불 가능 여부가 확정되면 영업일 기준 3~5일 내 결제수단별 환불 절차를 진행합니다. 카드 환불 반영 시점은 카드사 정책에 따라 달라질 수 있습니다.

상품별 제조사/공급사 조건이 우선 적용될 수 있으며, 상세 조건은 견적서와 주문 확인 단계에서 함께 안내합니다. 이용 가이드와 이용약관에서도 교환/반품 기준을 확인할 수 있습니다.

FAQ

어떤 이동 거리 옵션이 있나요?

75mm, 150mm, 300mm, 450mm, 600mm의 5가지 이동 거리 옵션을 제공하며, 각각 개방형과 커버형으로 선택할 수 있습니다.

별도의 컨트롤러가 필요한가요?

아니요, 컨트롤러와 리니어 엔코더가 내장되어 있어 별도의 제어 장치 없이 사용할 수 있습니다.

커버형과 개방형의 차이는 무엇인가요?

커버형은 먼지나 오염으로부터 보호가 필요한 환경에 적합하며, 개방형은 일반적인 실험실 환경에서 사용하기 적합합니다.

어떤 구동 방식을 사용하나요?

리드스크류(Lead-screw) 방식을 사용하며, 고정밀·저속 특성과 인라인 드라이브 구조를 갖추고 있습니다.

선형 이송장치

옵션 선택

상품 설명

핵심 규격

상세 규격표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

배송/설치 가능 지역

서울 전 지역

경기 주요 지역

인천 전 지역

지방 주요 연구·산업 지역

FAQ

관련 상품

다목적 원심분리기

미니 원심분리기

스캐닝&현미경 스테이지

그리퍼

상품 설명

핵심 특징

기술 사양

상세 규격표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

상세 규격 표

주문 옵션

배송/교환/반품 안내

배송 안내

서울 전 지역

경기 주요 지역

인천 전 지역

지방 주요 연구·산업 지역

교환/반품/환불 안내

FAQ

관련 상품

다목적 원심분리기

미니 원심분리기

스캐닝&현미경 스테이지

그리퍼
